Description
The Independence Series (IRW) is Concord American Flagpole’s premier internal winch & wire halyard system, engineered for superior security, strength, and ease of operation. Designed for installations requiring maximum durability and professional aesthetics, the IRW is ideal for government facilities, corporate campuses, stadiums, industrial sites, military bases, and large commercial properties.
Featuring a reinforced welded door frame, heavy-duty stainless steel winch, and flush mount locking door, the Independence Series delivers the highest levels of tamper protection and wind-load performance in its class.

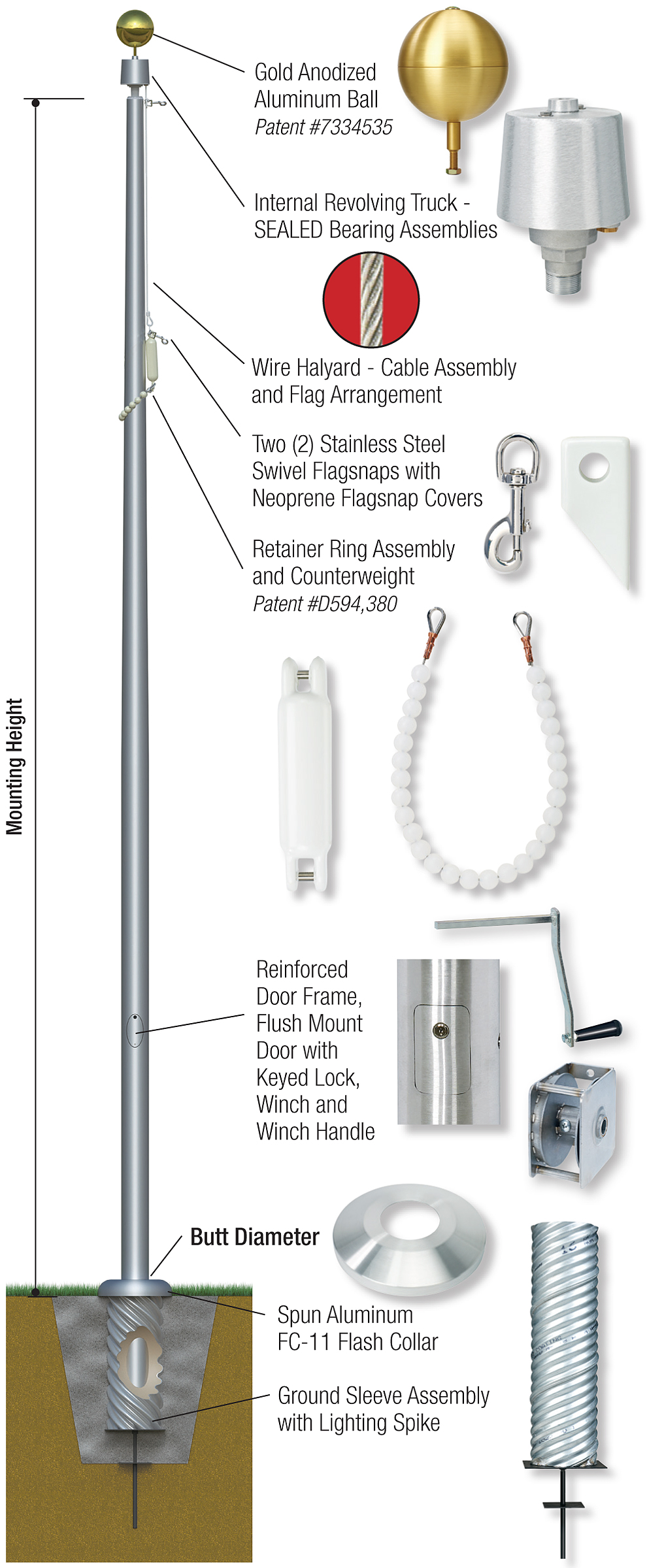

⭐ Key Features
Heavy-duty internal stainless steel winch with removable hand crank
Wire halyard cable assembly for extreme durability

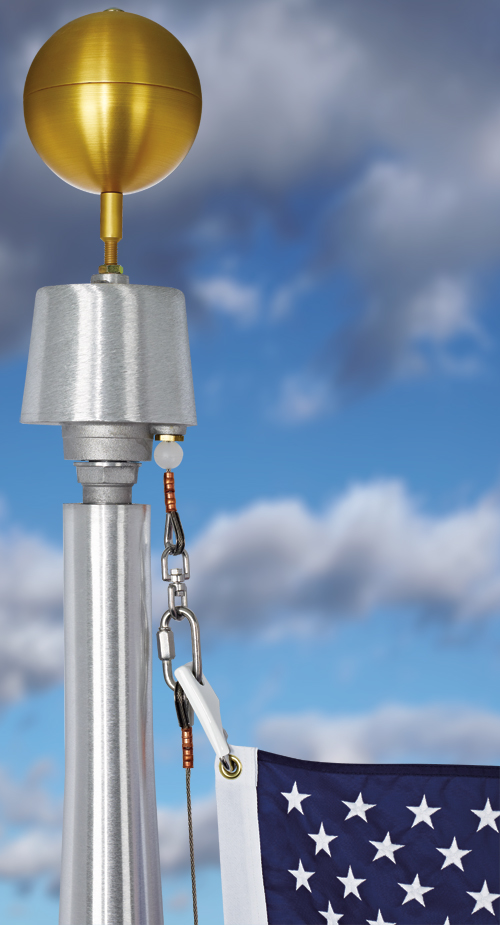

Flag arrangement system with shock-spring (for 8’x12′ and larger flags)
Patented plastic-coated counterweight
Beaded retainer ring assembly
Reinforced welded door frame with exceptional strength
Flush mount lockable access door for clean architecture and security

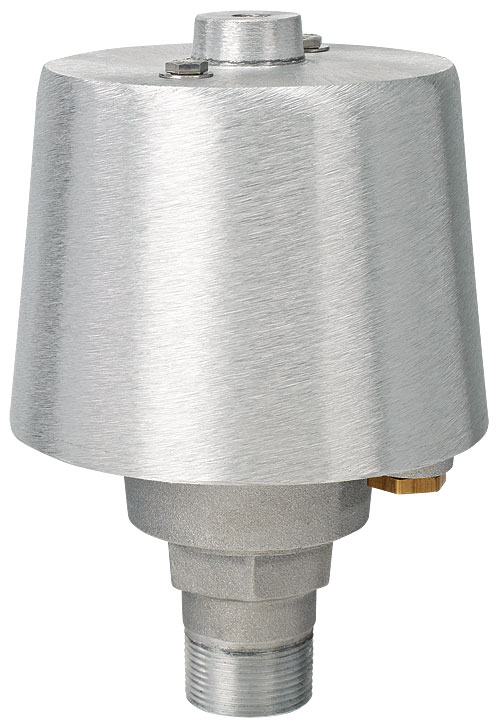

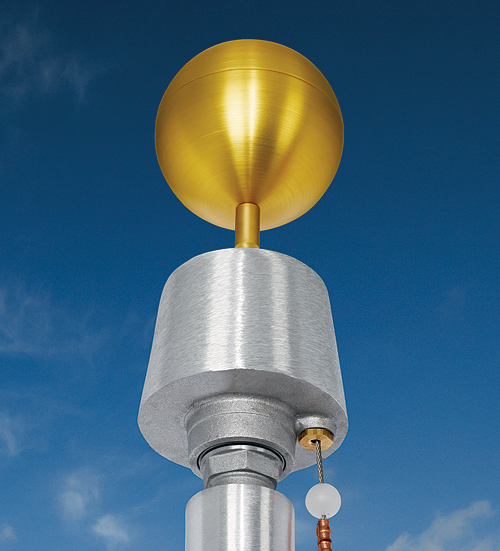

Cast aluminum revolving truck with sealed stainless steel bearings
Patented gold anodized finial
Stainless steel swivel snaps with neoprene covers
Spun aluminum FC-11 flash collar
Corrugated galvanized steel ground sleeve with grounding spike

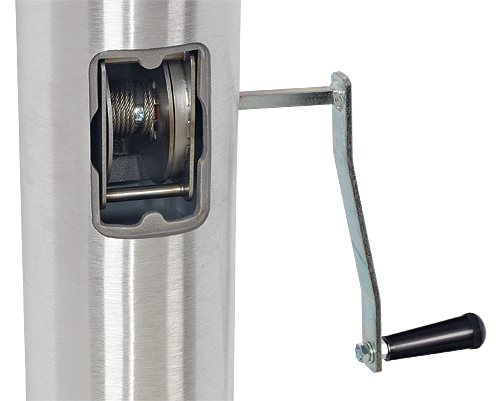

⭐ Reinforced Welded Door Frame (Independence Series)
The IRW uses an inset reinforced aluminum door frame welded directly into the precision-cut door opening, delivering:
Superior wind-speed ratings
Higher strength-to-size efficiency
Increased structural rigidity around the access point
Maximum tamper resistance for secure public installations
A smooth, flush-fitting architectural door
This makes the IRW ideal for high-wind locations, large-flag applications, and projects requiring extreme reliability.
⭐ Internal Winch & Wire Halyard System
The Independence Series uses a professional-grade internal wire halyard assembly:
Stainless steel winch for precise raising/lowering
Wire cable engineered for high tension and long service life
Counterweight + retainer ring stabilize flag movement
Shock-spring assembly supplied with 8’ x 12’ and larger flags
Extremely quiet and resistant to rope wear or fraying
⭐ Technical Highlights
Heights: 20′ to 80′
Butt diameters: 6″ to 8″ (larger with upgrades)
Winch: Stainless steel, removable crank
Halyard: Wire cable internal system
Revolving truck: Cast aluminum, sealed bearings
Access door: Reinforced welded frame, flush mount, locking
Ideal for large flags, high-wind zones, and high-security sites
⭐ Standard Upgrades (10″–12″ Butt Dia., 40’–80′)
Heavy-duty dual sealed bearing truck
Upgraded heavy-duty stainless steel swivel snaps
Heavy-duty FC-11 flash collar
Heavy-duty 5/8″ ball stem
⭐ Finish Options
Available in Concord American’s premium finish selections:
Satin
Anodized Clear
Anodized Dark Bronze
Anodized Black
BronzeTone Powder Coat
Black Powder Coat
White Powder Coat
Clear Powder Coat
⭐ Why Choose the Independence Series
Most durable internal-halyard system offered by Concord American
Quiet, secure, and engineered for large flags and demanding wind conditions
Architectural flush door with reinforced frame
Ideal for government, commercial, industrial, military, and coastal installations
Proudly Made in the USA
